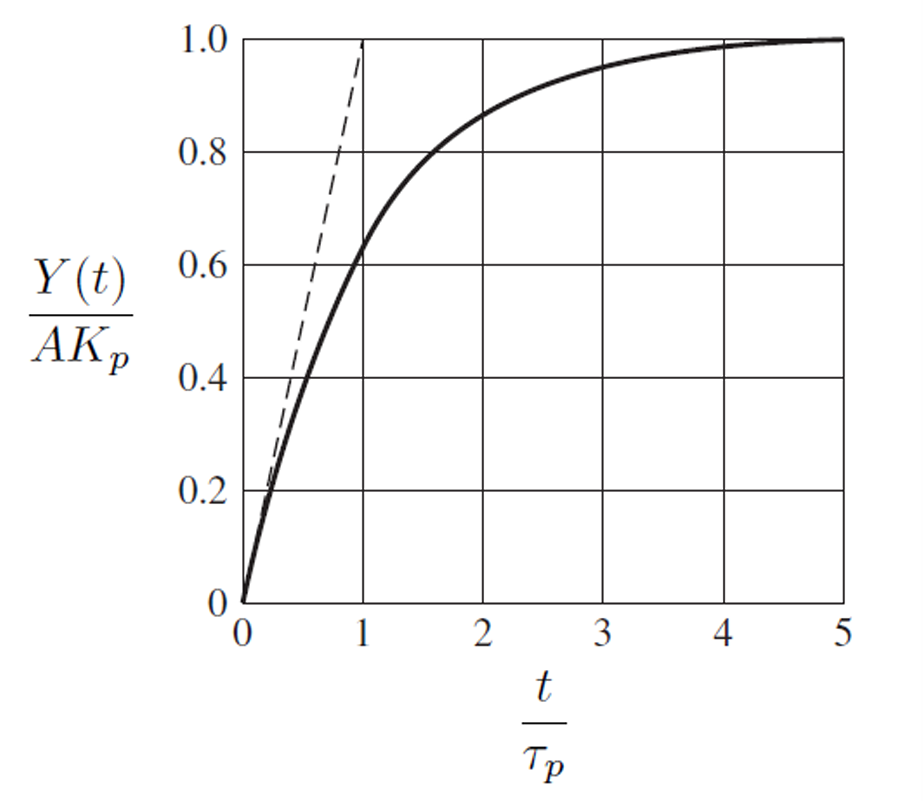

17. Response of First Order System to Step Input

  • If the initial rate of change of \(Y(t)\) were maintained, the response would be complete in one time constant.

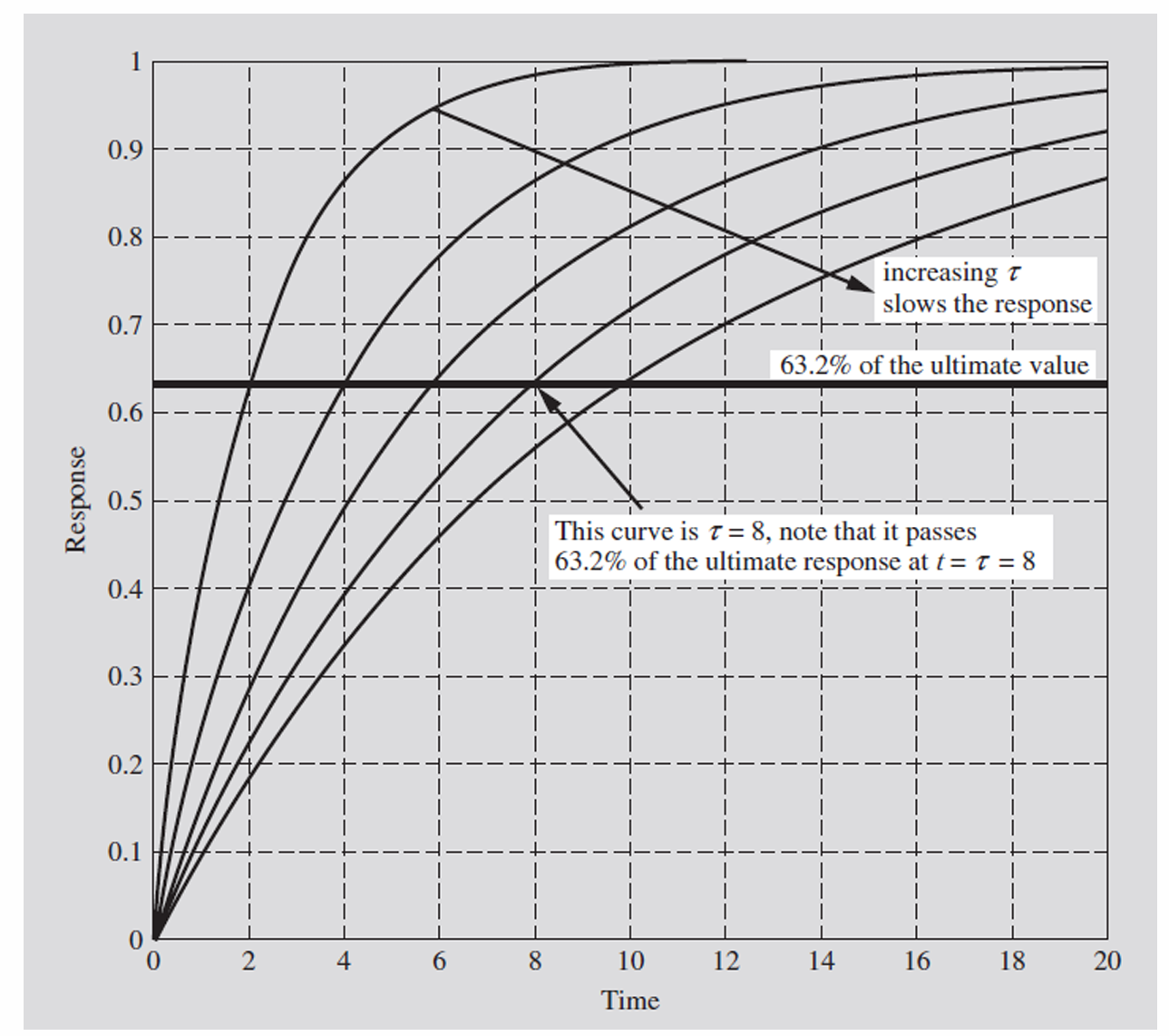

  • The value of \(Y(t)\) reaches 63.2% of its ultimate value when the time elapsed is equal to one time constant \(\tau_p\).
