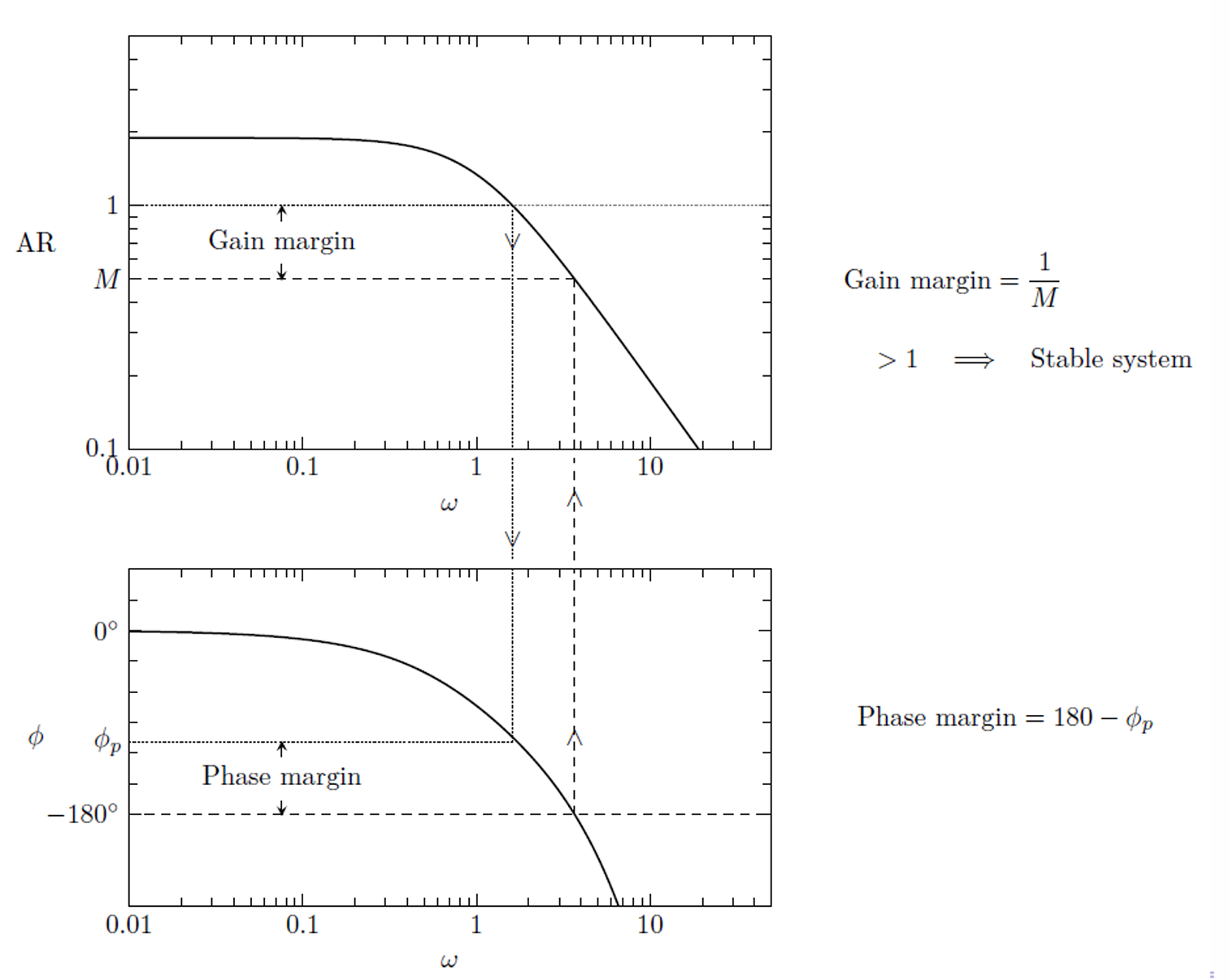

4. Gain Margin and Phase Margin


Gain margin larger than 1 is a safety factor for stable operation. Typical gain margins are in the range 1.4 to 3.

Typical phase margins used by the designers are larger than \(30^\circ\).
